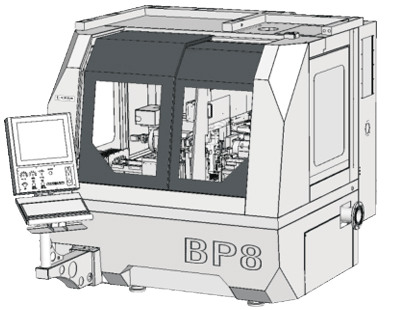

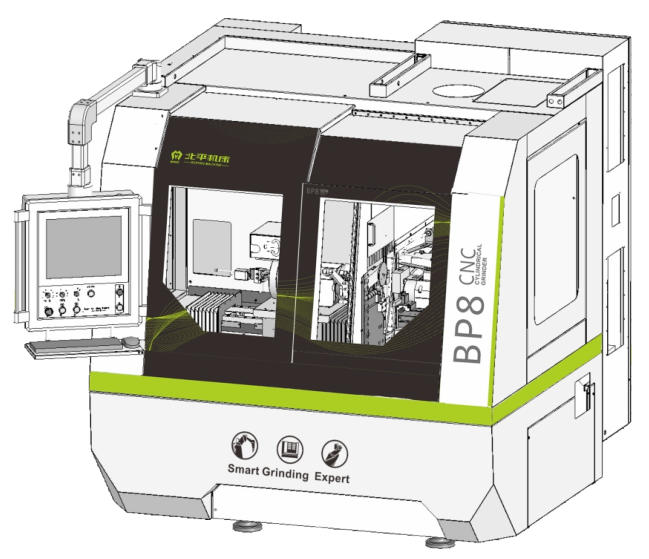

BP8 grinding machine is specialized in carbide blank grinding withdiameter under 25mm, as perfect machine for punch, complicated shape molds and big Length-diameter rationworkpieces.Multi-functional robot and optional on-line measuring device guarantee the machine running fromsmall batch production to mass production. Professional grinding wheel balancing technology guarantees theworkpiece concentricity. CNC controlled five axis linkage is capable of grinding flat surface, multi-angles,eccentric and noncylindrical cam surface. BP8 CNC software can realize synchronized grinding of roughing andfinishing with high speed and high precision. Optional linear scale enhances runin accuracy, guarantees highcone shape, cylindrical accuracy and surface finishing.
1, New 20Kw strong grinding function with BP8, more flexible for smallbatch workpieces grinding with unbelievable results.
2, Innovative roughing wheel angle setup device and technology easilyrealize grinding balance force smooth change.
3,High precision ball screws bring high stability and efficiency to theloading device.
4, Optional linear motor with Heidenhain scale enhances machineaccuracy sharply.
5,Optional natural granite provides excellent vibration absorptionperformance and temperature stability.
6, Innovative front and rare position device;
7, Synchronized roughing and finishing high speed grinding processenables 3-5 times efficiency as conventional grinding process.
8,3D OD shaping software optional with smart, clear and programmableinterface, for unlimited grinding profile possibility.
9, CNC C axis capable for faces, angles, eccentric and non cylindricalcam surface grinding.10, Up-down shank support system available for workpiece with headbigger than shank.
